3.2 Di-D Diagnostic DIY - without scan tool

Postby 4ePikanini Fri Nov 18, 2011 2:55 pm

Locate the diagnostic port in the driver footwell underneath the fuel filler opener handle.

This picture is not from a pajero but the location is almost identical

Then ground terminal one with a piece of wire


Then switch ignition on and look at the dash lights.

Depending on what codes there are, the following lights may blink

- Check Engine Light - for engine codes
- Center diff lock light - for transfer codes
- Neutral green light - for auto gearbox codes
- ABS light - for ABS codes

To read these flashing lights are easy.

Count the long flashes followed by the short flashes.

Long flashes denominate 10's and short flashes denominate 1's.

Example
_____ _____ _____ __ __ __ __ (Error code 34)

Each code error will have a pause in between and then go to the next error code. At then end it will start from the beginning so if you think you missed a count. Just wait and count again to make sure you have all the errors.

Disconnecting the battery for 30 minutes clears most codes but some codes will only clear during driving if the problem has been solved and the ecu is happy with the diagnostic condition.

Fault codes below.

ENGINE CODES


AUTO BOX CODES


TRANSFER CASE CODES



here are the full manual downloads
Attachments
Diesel pump and timing.pdf
(781.93 KiB) Downloaded 5233 times
autobox.pdf
Autobox manual and diagnostics
(1.87 MiB) Downloaded 2913 times
Last edited by 4ePikanini on Fri Nov 25, 2011 7:19 am, edited 1 time in total.


Marius Fourie
MY DIY WEBSITE
2005 Touareg R5 Air & Bi-Xenon
User avatar
4ePajero
Posts: 1352
Joined: Fri Jun 12, 2009 1:59 pm
Vehicle: 1989 Pajero LWB
Location: East London

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby 4ePajero Fri Nov 18, 2011 3:01 pm

(Your images still don't display! ... or is it my browser? :oops: )

To check it yourself, log out and surf without logging in - usually that will show/not show images.
Gerhard Fourie
If you want to shoot somebody, make sure you aim at his head, not your own foot.
Me
User avatar
4ePajero
Posts: 1352
Joined: Fri Jun 12, 2009 1:59 pm
Vehicle: 1989 Pajero LWB
Location: East London

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby 4ePajero Fri Nov 18, 2011 3:08 pm

I wonder how good this is at $29-95:



[img=center]http://www.amazon.com/gp/product/images/B002PYBZJO/ref=dp_image_0?ie=UTF8&n=15684181&s=automotive[/img]

The reviews seem OK for "quick-n-dirty"
Gerhard Fourie
If you want to shoot somebody, make sure you aim at his head, not your own foot.
Me
User avatar
4ePikanini
Affiliate Member
Posts: 2786
Joined: Sun Jun 14, 2009 9:38 pm
Vehicle: 2001 Pajero LWB 3.2 Di-D GLS
Country: South Africa
Location: East London, South Africa
Contact:

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby 4ePikanini Fri Nov 18, 2011 3:11 pm

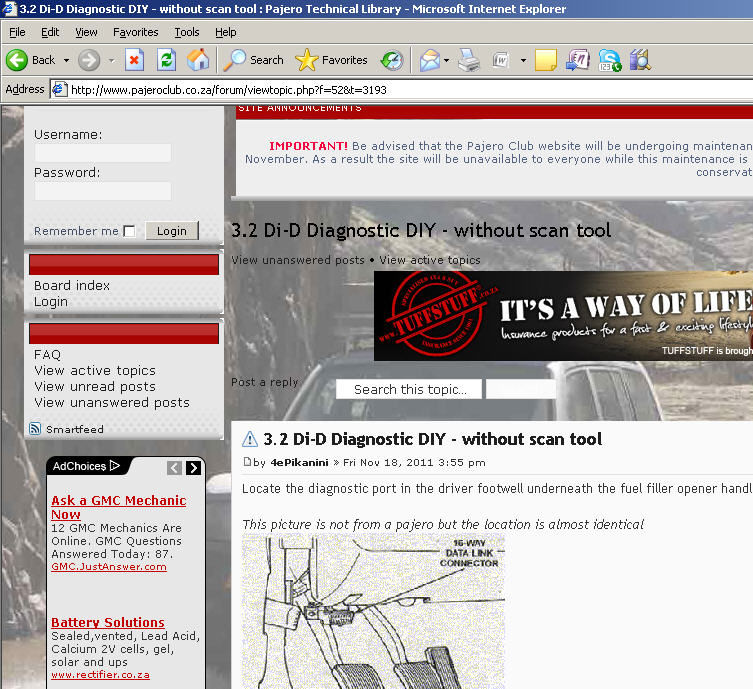

works fine on my side when logged out (and using different browser to avoid cache issues)

Marius Fourie
MY DIY WEBSITE
2005 Touareg R5 Air & Bi-Xenon
User avatar
4ePikanini
Affiliate Member
Posts: 2786
Joined: Sun Jun 14, 2009 9:38 pm
Vehicle: 2001 Pajero LWB 3.2 Di-D GLS
Country: South Africa
Location: East London, South Africa
Contact:

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby 4ePikanini Fri Nov 18, 2011 3:18 pm

Marius Fourie
MY DIY WEBSITE
2005 Touareg R5 Air & Bi-Xenon
pierreandre
Posts: 135
Joined: Wed Jun 09, 2010 10:34 am
Vehicle: Mitsubishi Pajero 3.5 GLS
Country: South Africa
Location: Pretoria
Contact:

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby pierreandre Fri Nov 18, 2011 4:41 pm

4ePikanini wrote:This is on my wish list

http://www.ebay.com/itm/SCANGAUGE-II-OB ... 904wt_1187

[ Image ]

More info here - http://www.scangauge.com/

Be very careful: Your pajero probably doesn't support OBDII. I've got a proper diagnostic cable and software that can read MUT-II/III and OBDII and it only works when using MUT-II. Only the American Gen 3's supported OBDII IIRC.
Pierre-Andre
2001 Pajero 3.5 GLS LWB
2001 Colt 3000i 4x4 D/C (SOLD)
User avatar
Greg_SA
Posts: 231
Joined: Tue Jun 29, 2010 2:38 pm
Vehicle: 2008 Pajero DiDc LWB
Country: South Africa

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby Greg_SA Fri Nov 18, 2011 4:42 pm

4ePikanini wrote:This is on my wish list

http://www.ebay.com/itm/SCANGAUGE-II-OB ... 904wt_1187

[ Image ]

More info here - http://www.scangauge.com/


Nice :) Just check that it is 100% compatible with the Pajero... apparently they Pajero doesn't use a 100% standard ODBII system - the protocol is a bit different.
2008 Pajero DiDc LWB GLS
2005 Pajero DiD SWB GLS (sold)
Go
Goodsy

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby Goodsy Sat Jan 14, 2012 7:01 am

Is there a way faults can be read using the dash lights on a Petrol NP?

Cheers
Tim
pierreandre
Posts: 135
Joined: Wed Jun 09, 2010 10:34 am
Vehicle: Mitsubishi Pajero 3.5 GLS
Country: South Africa
Location: Pretoria
Contact:

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby pierreandre Mon Jan 16, 2012 11:46 am

Goodsy wrote:Is there a way faults can be read using the dash lights on a Petrol NP?

Should be the same method. My Petrol NM works.
Pierre-Andre
2001 Pajero 3.5 GLS LWB
2001 Colt 3000i 4x4 D/C (SOLD)
Tolla
Posts: 17
Joined: Thu Jan 19, 2012 12:26 pm
Vehicle: Pajero 3,2 Di-D, GLS, SWB, 2005
Country: South Africa

Re: 3.2 Di-D Diagnostic DIY - without scan tool

Postby Tolla Sat Jan 21, 2012 3:53 pm

Thank you for the tip to do the diagnostics without an scan tool. It works like a charm.
The engine light on my Pajero is displaying error code 43, Timing control valve system. Do you have any idea what this could be ?
The diff-lock light is flashing continually at the same pace ?

My Pajero is running fine under normal conditions, but sometimes it feels like it is in the wrong gear, specially when accelerating after a speed hump.

Then I also have the problem of the traction control off light and the slip light illuminating at the same time when I accelerate from time to time and when towing on steep hills. It feels like the engine is going into a limp mode and I don't have enough power ?
2005 Pajero, 3,2 Di-D, SWB, GLS
