LED Dash Bulb replacement - Pajero Gen3

Thu Jun 21, 2012 12:26 pm

My bottom two green bulbs on the 4x4 display was blown so instead of buying replacements at the dealer for about R25 each I ordered a set of led bulbs from ebay. (10 T5 286 White LED Bulbs with Wedge Base Dashboards)

A few weeks wait and they arrived this morning. Luckily they sent me 15 bulbs otherwise I wouldn't have had enough. You need 12 to do the back lighting, 4x4 lights, center amber and diff lock light.

DIY Steps

Lower the steering wheel with the lever underneath the column.
Remove the 2 screws in the top cover of the cluster.
Pry the bottom parts away first of the black cover and then the top part.
Note the clips

Swivel it out being careful not to break it.

Then remove the following 4 screws and pull the cluster straight out and then swivel the bottom part to you and up and out with the bottom part of the cluster coming out first between the dash and steering wheel facing away from you (effectively making the cluster do a front flip away from you)

This reveals the back of the cluster

Now let's look at the bulbs. They twist out anti clockwise and looks like this.

Removing the clip from the bulb

The ebay LED bulb

The LED bulb stripped apart

The connector with the new LED bulb in

This is the bulb locations for the cluster

To do the far right one in the top picture you need to remove a PCB board to get to it.
Remove it by undoing the following screws and gently pulling straight up. It will have a bit of resistance.

This what the PCB board looks like underneath

Reassembly is reverse of disassembly.

Bulb comparison

Temp = LED
Fuel = old bulb

Bottom left wheel = LED
Top 2 wheels = old bulb

Right side of cluster = LED
Left side of cluster = old bulb

Finished cluster

All the flashing lights work as they should and the dimmer works as well.

If the bulb doesn't work, remove rotate it 180 degrees, and re-install. LED's only work with the flow in one direction, unlike halogen bulbs that work with 12v from any of the 2 contact points.
Marius Fourie
MY DIY WEBSITE
2005 Touareg R5 Air & Bi-Xenon
User avatar
parabola
Vehicle: Mitsubishi Pajero Gen3 GLS 3500 V6 LWB A/T
Country: South Africa
Posts: 29
Joined: Tue Apr 03, 2012 10:21 am

Re: LED Dash Bulb replacement - Pajero Gen3

Thu Jun 21, 2012 2:08 pm

Thanks so much for this Marius. I have been wondering if this would be a worthwhile modification, and the side-by-side comparison is certainly quite helpful.

I have a few relevant questions for you/anyone else with the answers :
  1. Do you think it would be possible to just use bog-standard white LED's with a 300ohm resistor soldered to the cathode instead? Did you make use of the wedges at all? At 12V a 300ohm current limiting resistor would allow 28mA of current through a white LED.
  2. Did you possibly look at what size LED would be needed for the gearbox indicator lights? They look like they use a smaller holder.
  3. I have some blown backlights in the heater control unit, has anyone replaced these before, and could I do something similar with normal LED's?
  4. Do your remote mirror controls have a backlight? Mine has none but may have blown.
2001 Pajero NM GLS 3500 V6 LWB A/T
User avatar
4ePikanini
Affiliate Member
Contact:
Vehicle: 2001 Pajero LWB 3.2 Di-D GLS
Country: South Africa
Location: East London, South Africa
Posts: 2786
Joined: Sun Jun 14, 2009 9:38 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Thu Jun 21, 2012 8:56 pm

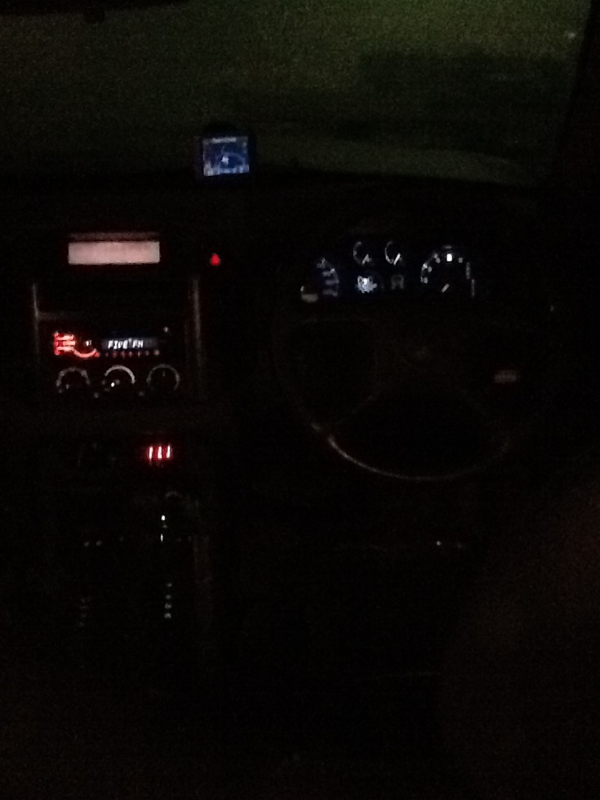

Full view pic.

Sent via iPad & Forum Runner
Attachments
Ernie
Contact:
Vehicle: 2x 1999 3.5 Pajeros
Country: South Africa
Location: Witbank
Posts: 90
Joined: Sat Jun 20, 2009 10:34 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Fri Jun 22, 2012 7:18 pm

How much did the led's cost with shipping and all?

Pajero 1 : 1999 3.5 V6 SWB
Pajero 2 : 1999 4L V8 (Lexus) SWB
Pajero 3 : 2007 3.2 Did SWB
User avatar
4ePikanini
Affiliate Member
Contact:
Vehicle: 2001 Pajero LWB 3.2 Di-D GLS
Country: South Africa
Location: East London, South Africa
Posts: 2786
Joined: Sun Jun 14, 2009 9:38 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Fri Jun 22, 2012 7:23 pm

Ernie wrote:How much did the led's cost with shipping and all?
$1.99 for 10 led bulbs. :) shipping included!
Marius Fourie
MY DIY WEBSITE
2005 Touareg R5 Air & Bi-Xenon
User avatar
CptPie
Vehicle: Pajero swb gen3
Country: Sa
Posts: 22
Joined: Sat May 19, 2012 3:28 pm

LED Dash Bulb replacement - Pajero Gen3

Fri Jun 22, 2012 8:09 pm

Lol it's crazy. You can't even post a letter @ that price in SA


Sent from my iPad using Tapatalk HD
Ernie
Contact:
Vehicle: 2x 1999 3.5 Pajeros
Country: South Africa
Location: Witbank
Posts: 90
Joined: Sat Jun 20, 2009 10:34 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Fri Jun 22, 2012 9:41 pm

That is really cheap :) locally they sell white led's roughly for R2 to R5 each depending on brightness plus 10c for the resistor.

Pajero 1 : 1999 3.5 V6 SWB
Pajero 2 : 1999 4L V8 (Lexus) SWB
Pajero 3 : 2007 3.2 Did SWB
muzzy
Vehicle: 3,2 didlwb pajero
Country: south africa
Posts: 6
Joined: Sun Jul 08, 2012 10:03 am

Re: LED Dash Bulb replacement - Pajero Gen3

Sun Jul 08, 2012 6:33 pm

the leds you used did yo have to put a resistor in ,as can get leds local ,did you just take old ones out andreplace with the new leds ?? as looks much brighter by far .cheers muzzy
User avatar
4ePikanini
Affiliate Member
Contact:
Vehicle: 2001 Pajero LWB 3.2 Di-D GLS
Country: South Africa
Location: East London, South Africa
Posts: 2786
Joined: Sun Jun 14, 2009 9:38 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Sun Jul 08, 2012 8:32 pm

muzzy wrote:the leds you used did yo have to put a resistor in ,as can get leds local ,did you just take old ones out andreplace with the new leds ?? as looks much brighter by far .cheers muzzy
The led bulbs i bought from ebay already had the resistors to work in a 12v system.

They look brighter but they arent. Crisper is the word and the dimmer still works.

Sent via iPad & Forum Runner
User avatar
mitsenoj
Vehicle: 2013 LWB 3.2 DiD
Country: South Africa
Posts: 67
Joined: Mon Aug 22, 2011 10:08 pm

Re: LED Dash Bulb replacement - Pajero Gen3

Sun Jul 15, 2012 9:04 am

Or you can just travel to Namibia, my long blown wheel light started working after a few hundred km's of bumpy gravel.

Nice to end a trip with more things fixed than when you started.

:D
Tim - Port Elizabeth
2000 Gen 3 3.2 DiD - LWB (Sold)
2013 Gen 4 3.2 DiD - LWB - Exceed
